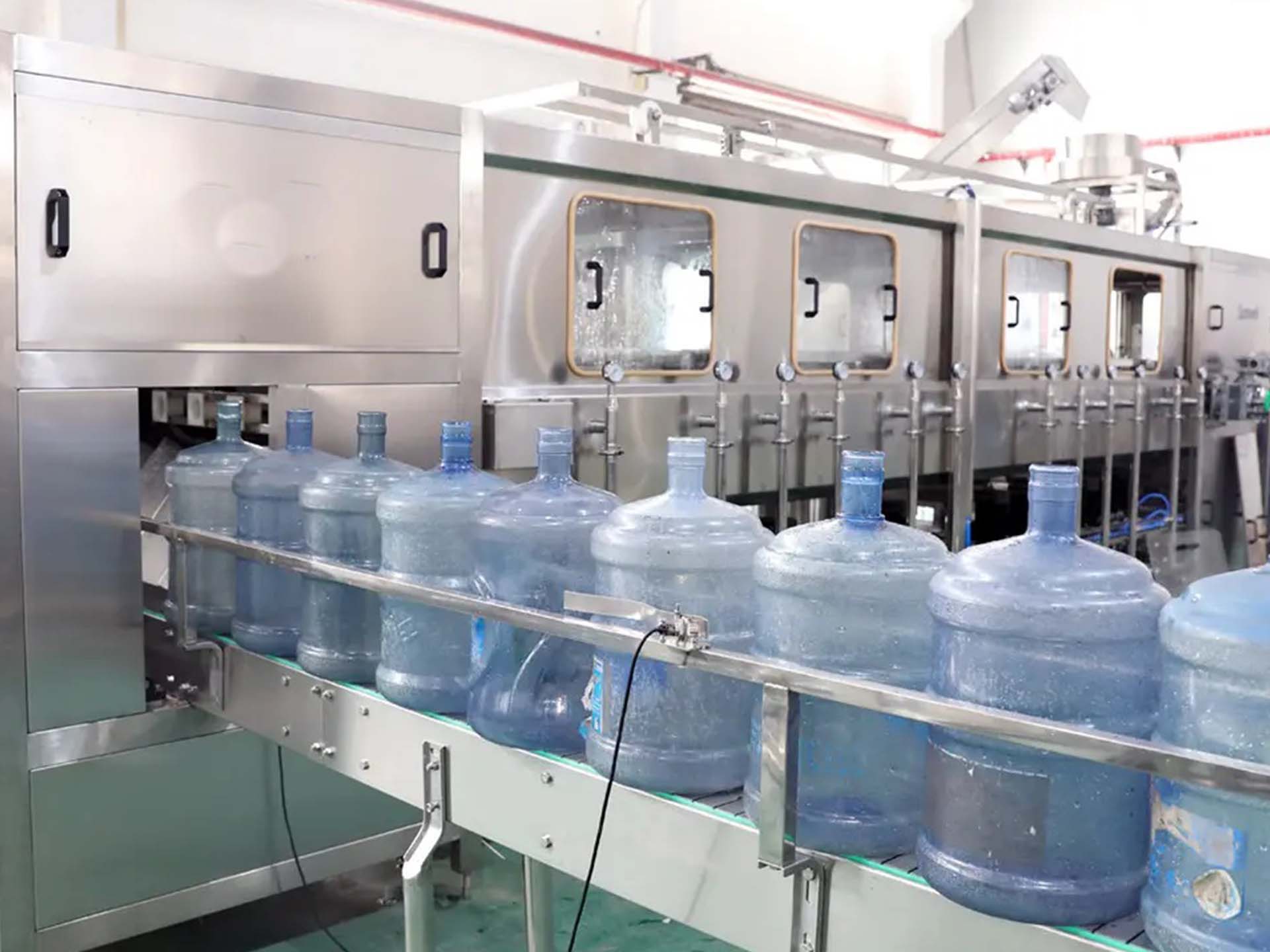

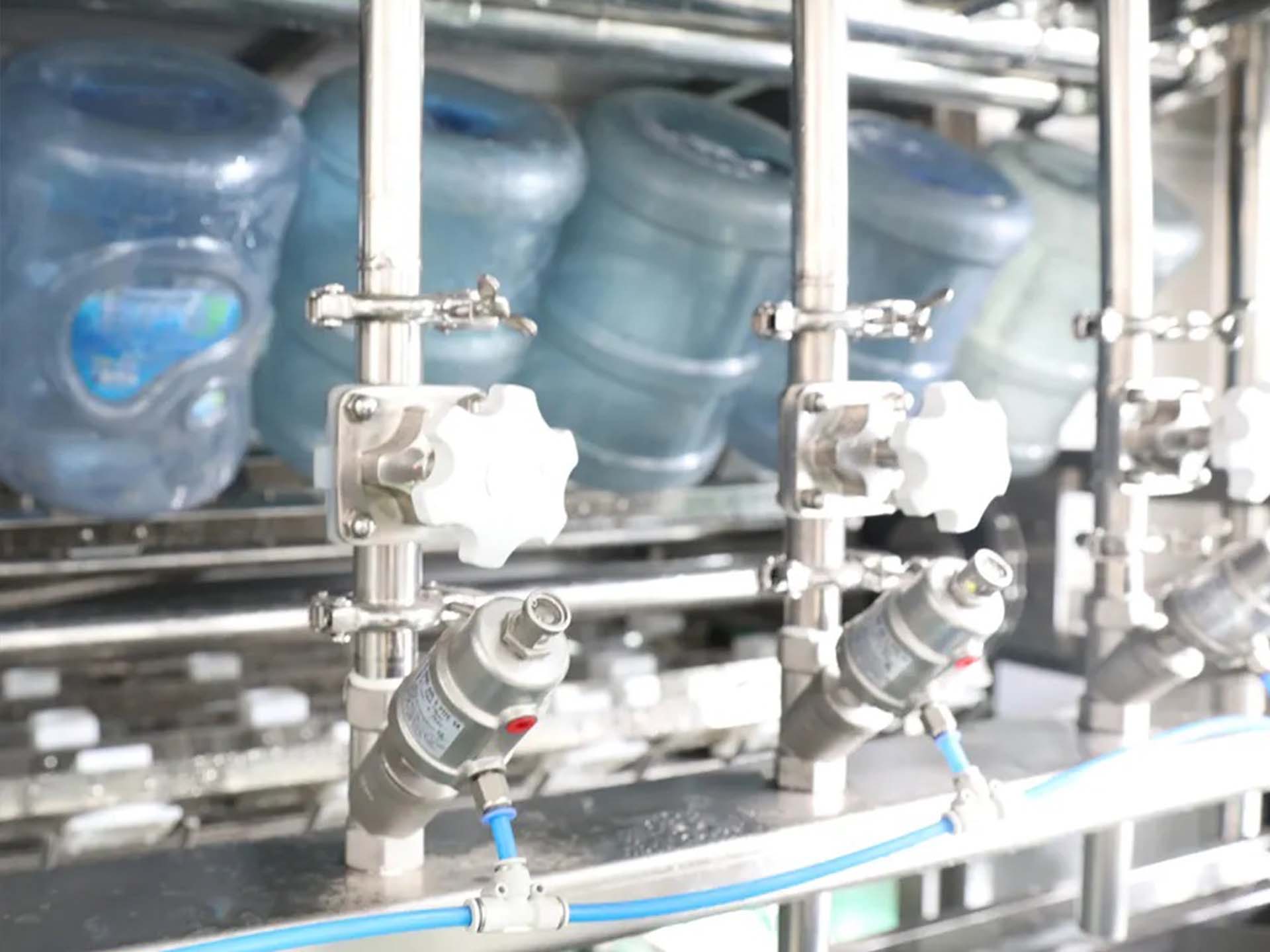

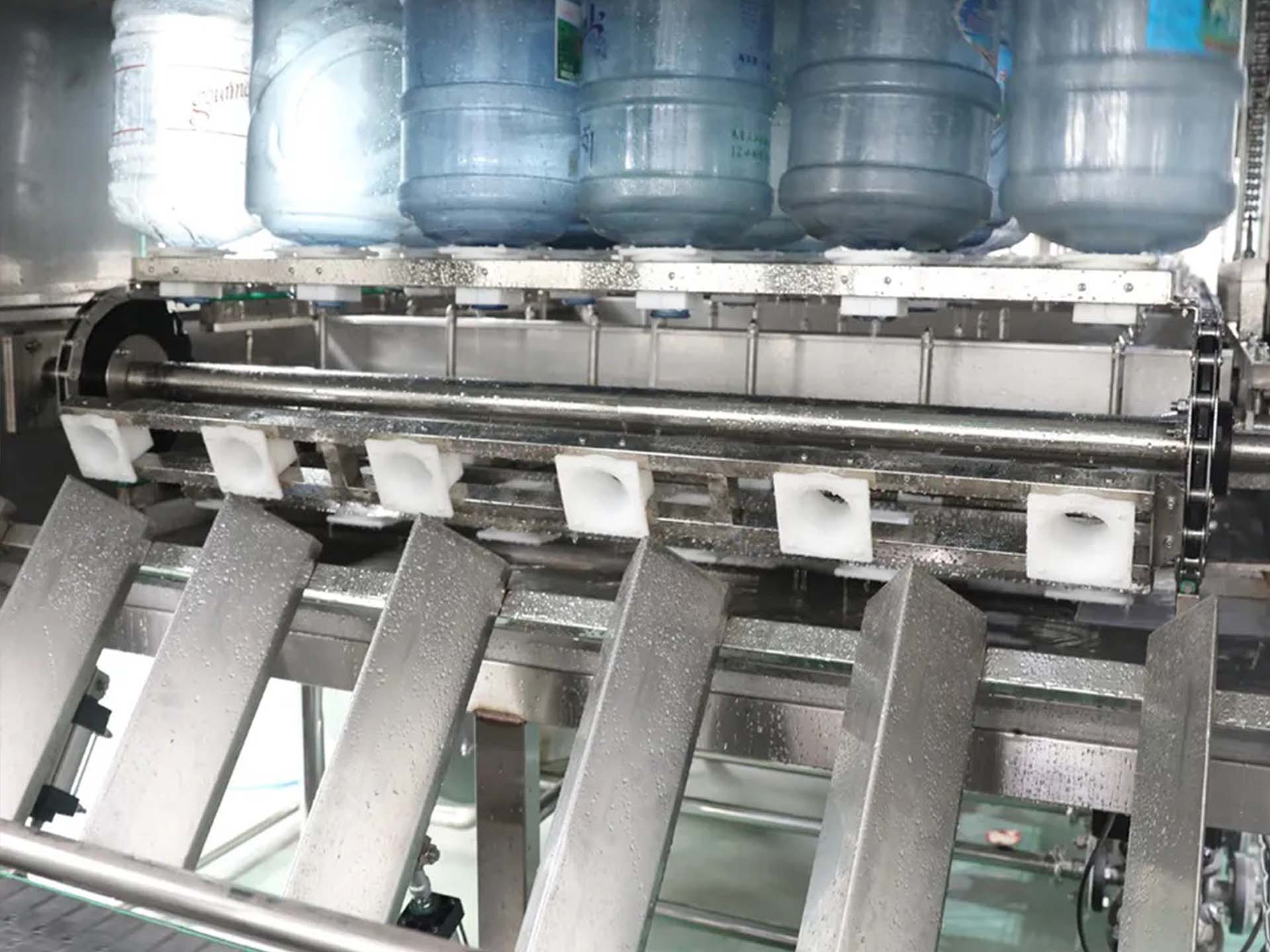

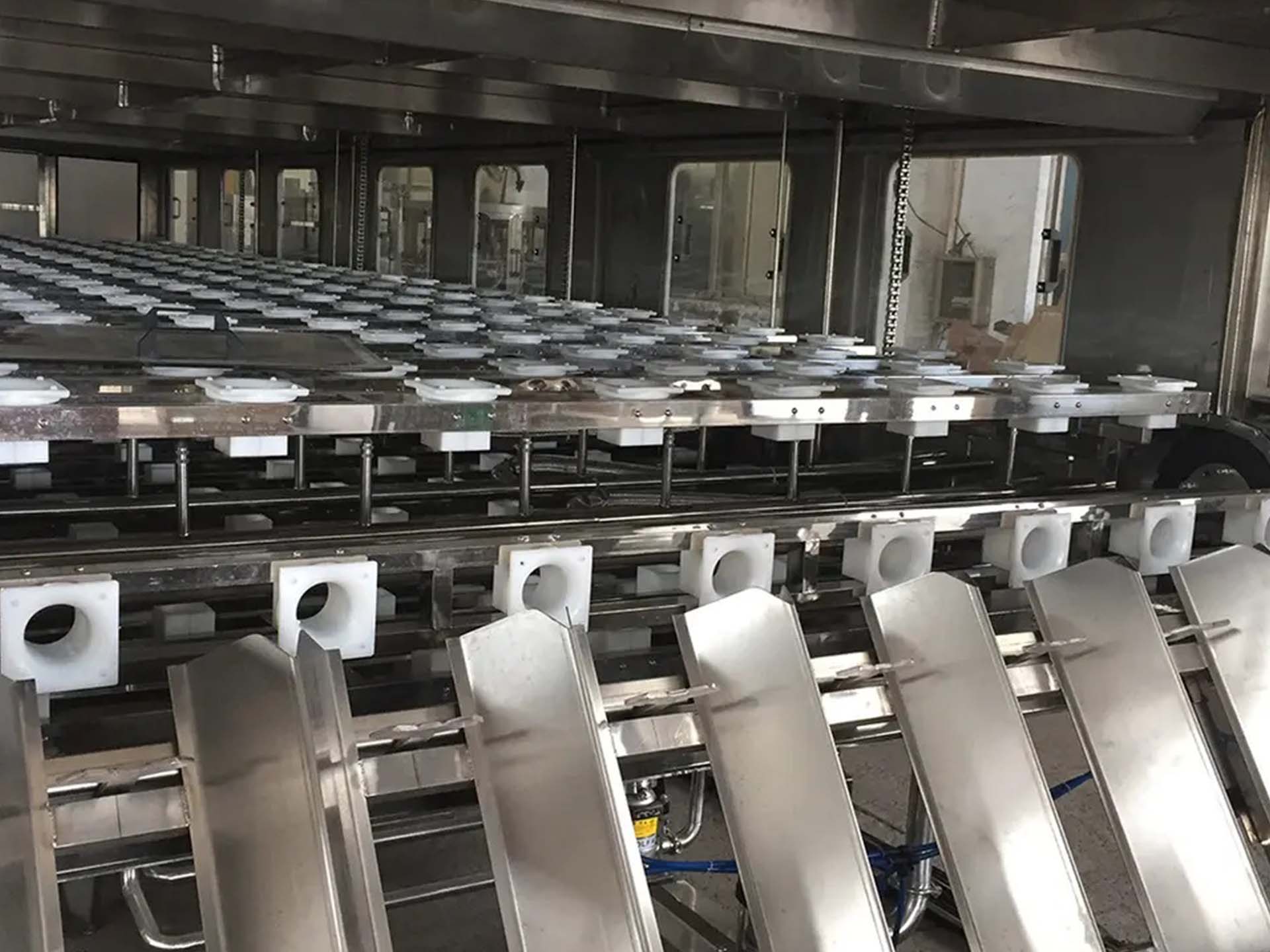

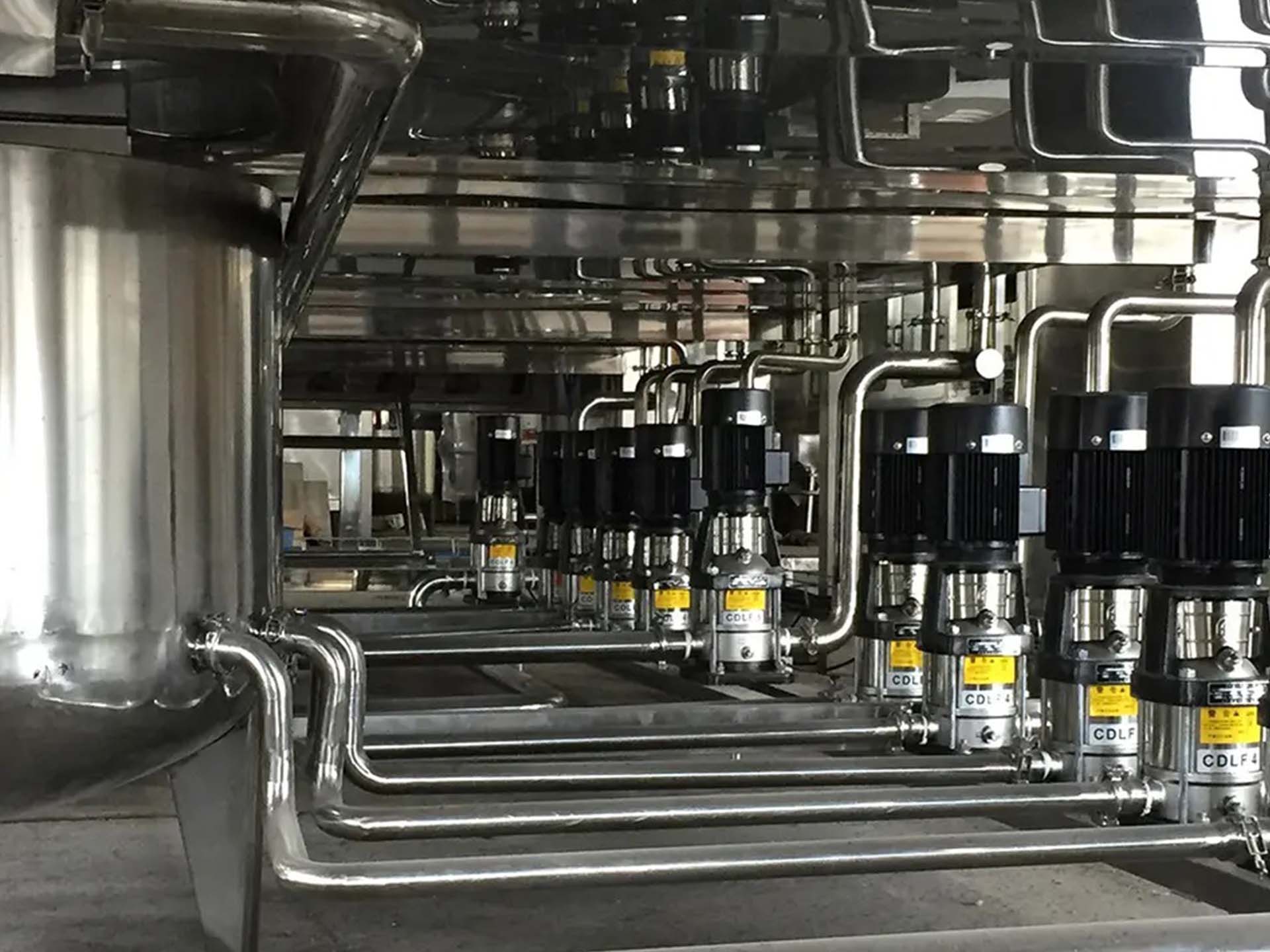

QGF series 5 gallon filling machine is designed for producing 5 gallon barrel drinking water.This machine is consisted of rinser,filler and capper. The rinser has several section of sprays which can be used as for both clean water rinsing and disinfectant rinsing.

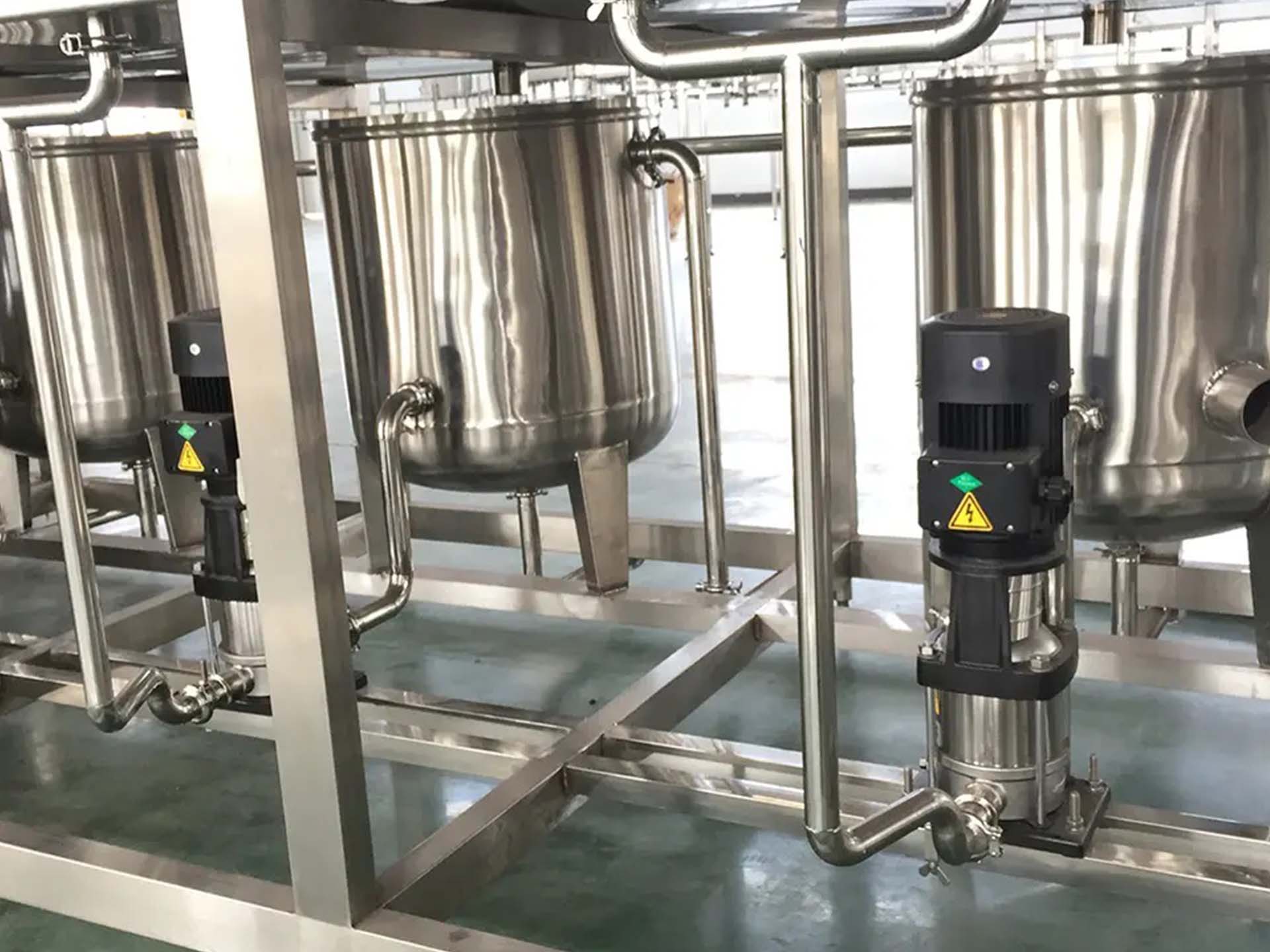

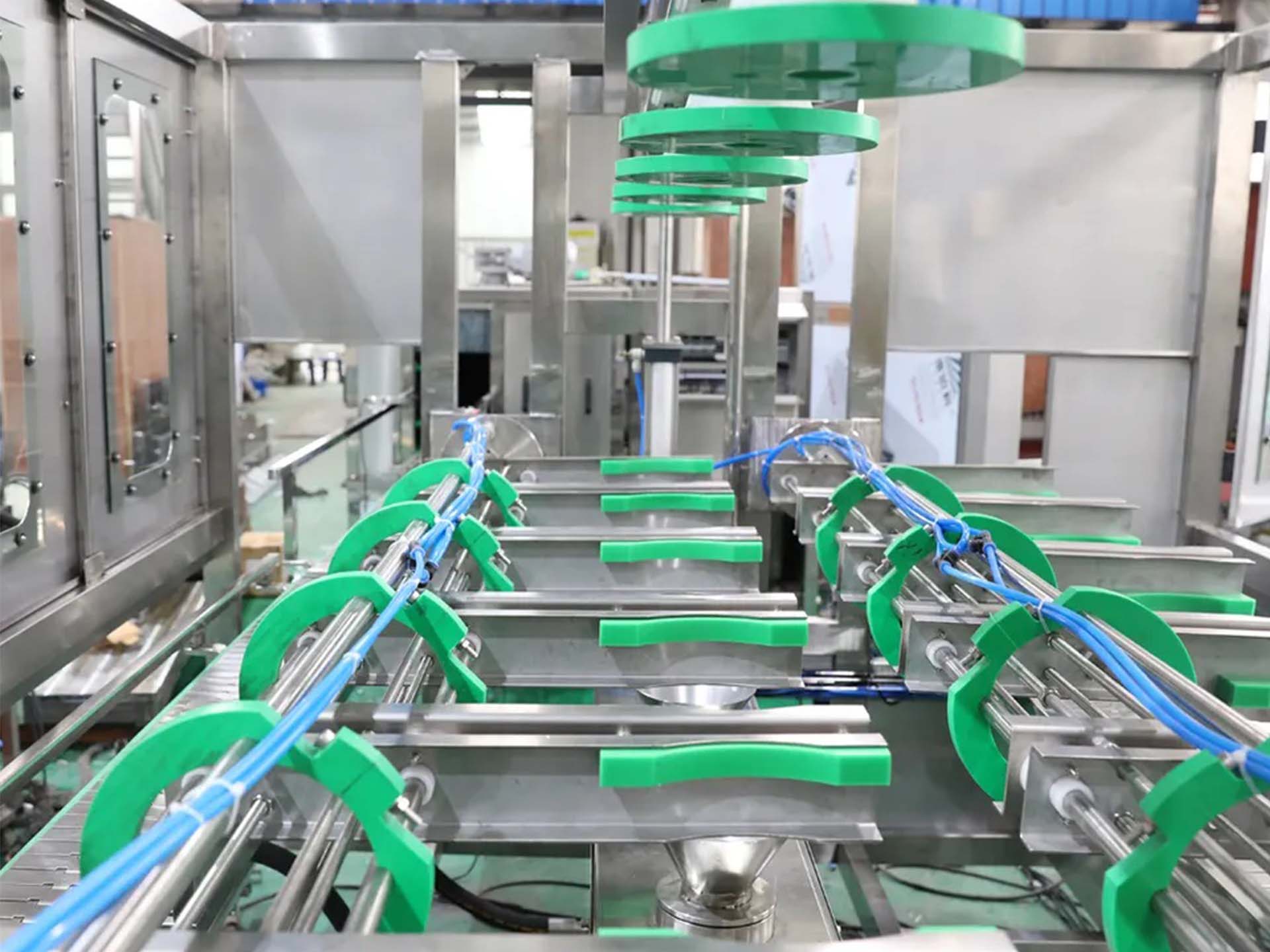

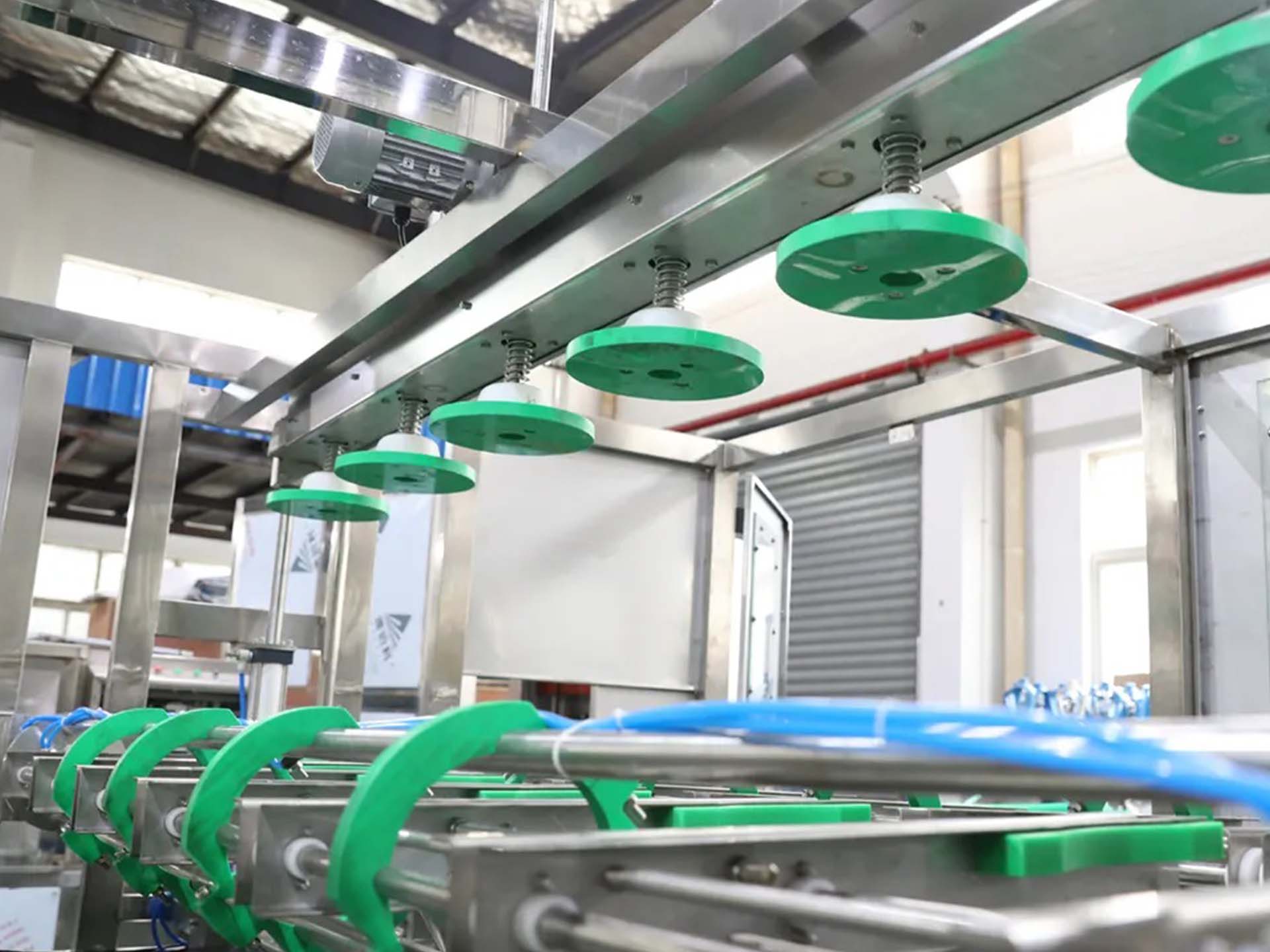

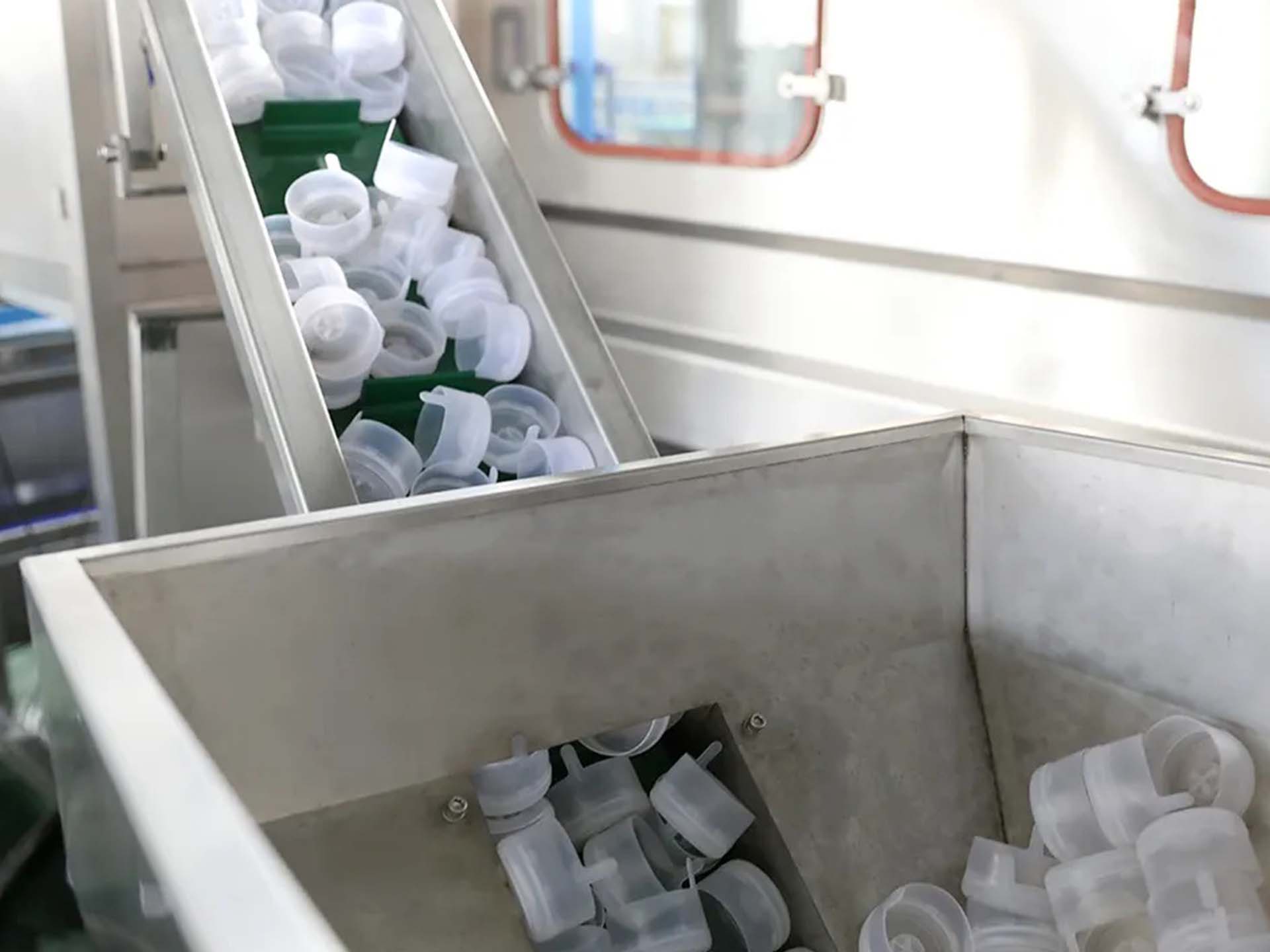

The disinfectant liquid can be recycled use. The machine also has automatic capping device and cap rinsing device. The whole production line can automatically feed barrel, rinsing, sterilizing, filling, capping, counting and output.
QGF barrel production line is specially used for 5 Gallon barrel drinking water from 150BPH to 1200BPH. Machine adopts the high-quality stainless steel material with erosion proof ability, it is an ideal equipment for small and middle size factory.
Main Features :
1. The 3-5 Gallon Filling Machines composed of barrel washer, barrel filling machine and barrel sealer into one unit.
2. Especially for filling drinking water of 3 and 5 gallons. It is an idea filling line to produce mineral water, distilled water and purified water.
3. The whole line is made of superior stainless steel, anti-corrosive and easy to clean.
4. Only two operators are needed for a line, which is wholly automatic barreled.
5. Full-auto or semi-auto barrel de-capper, full-auto leakage inspection, full-auto barrel outside brusher, full-auto barrel
loading machine, steam shrinking film machine and coding system can be choose depends on what customer’s need.
Decapper of 5 gallon filling machine:
This de-capping machine is designed for 3 & 5 gallon bottle in water production line. It’s used to pull out the cap of recycling bottle before rinsing. A combination of digital camera and fiber optic detectors allow to reject the bottles returned in the following conditions: Bottles without caps, Caps without plugs, Caps with just the top part left, Caps partially opened, Not removed caps.
| Model | Filling heads | Power of main motor | Total weight | Capacity | Dimension |
|---|---|---|---|---|---|
| QGF-100 | 1 | 0.37KW | 680kg | 100BPH | 500*4000*1500mm |
| QGF-300 | 2 | 0.6KW | 1500kg | 300BPH | 900*4000*1500mm |
| QGF-450 | 3 | 0.8KW | 2100kg | 450BPH | 1300*4000*1500mm |
| QGF-600 | 4 | 1KW | 3000kg | 600BPH | 1800*4000*1500mm |
| QGF-900 | 6 | 1.5KW | 3500kg | 900BPH | 2400*4000*1500mm |
| QGF-1200 | 6 | 1.8KW | 4000kg | 1200BPH | 2900*4000*1500mm |
| QGF-1500 | 8 | 2KW | 4500kg | 1500BPH | 3400*4000*1500mm |
